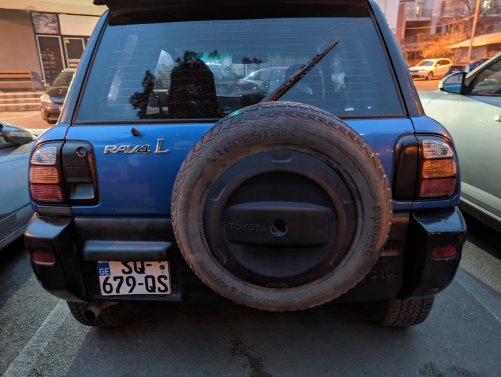

PXL_20230319_152337496

Break lights

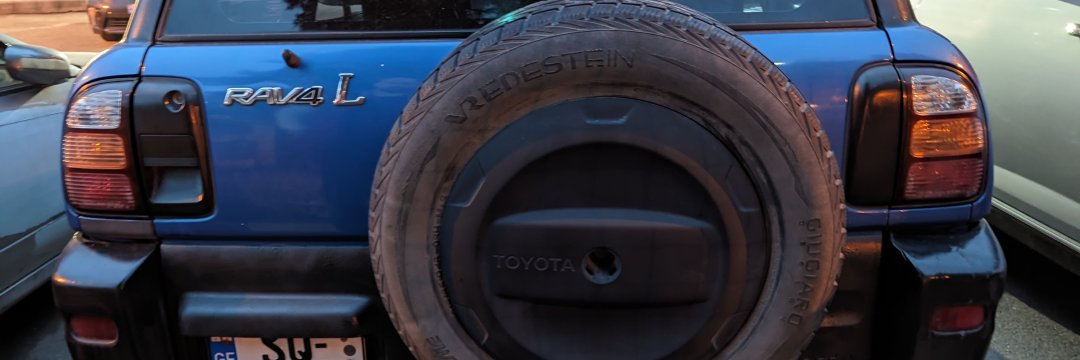

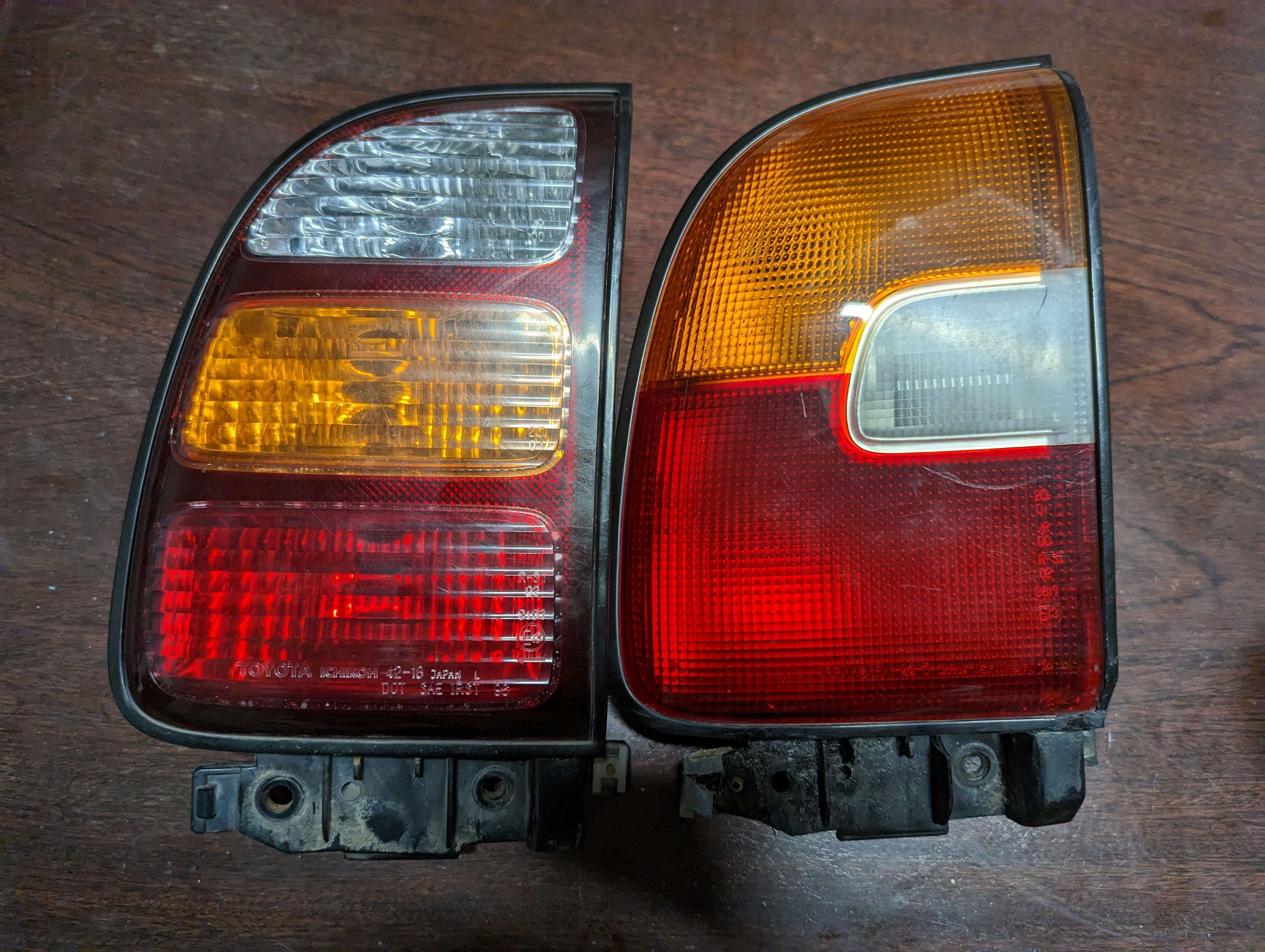

This upgrade was done in order to replace the broken right break light and refresh the look of the car.

PXL_20230319_111056319

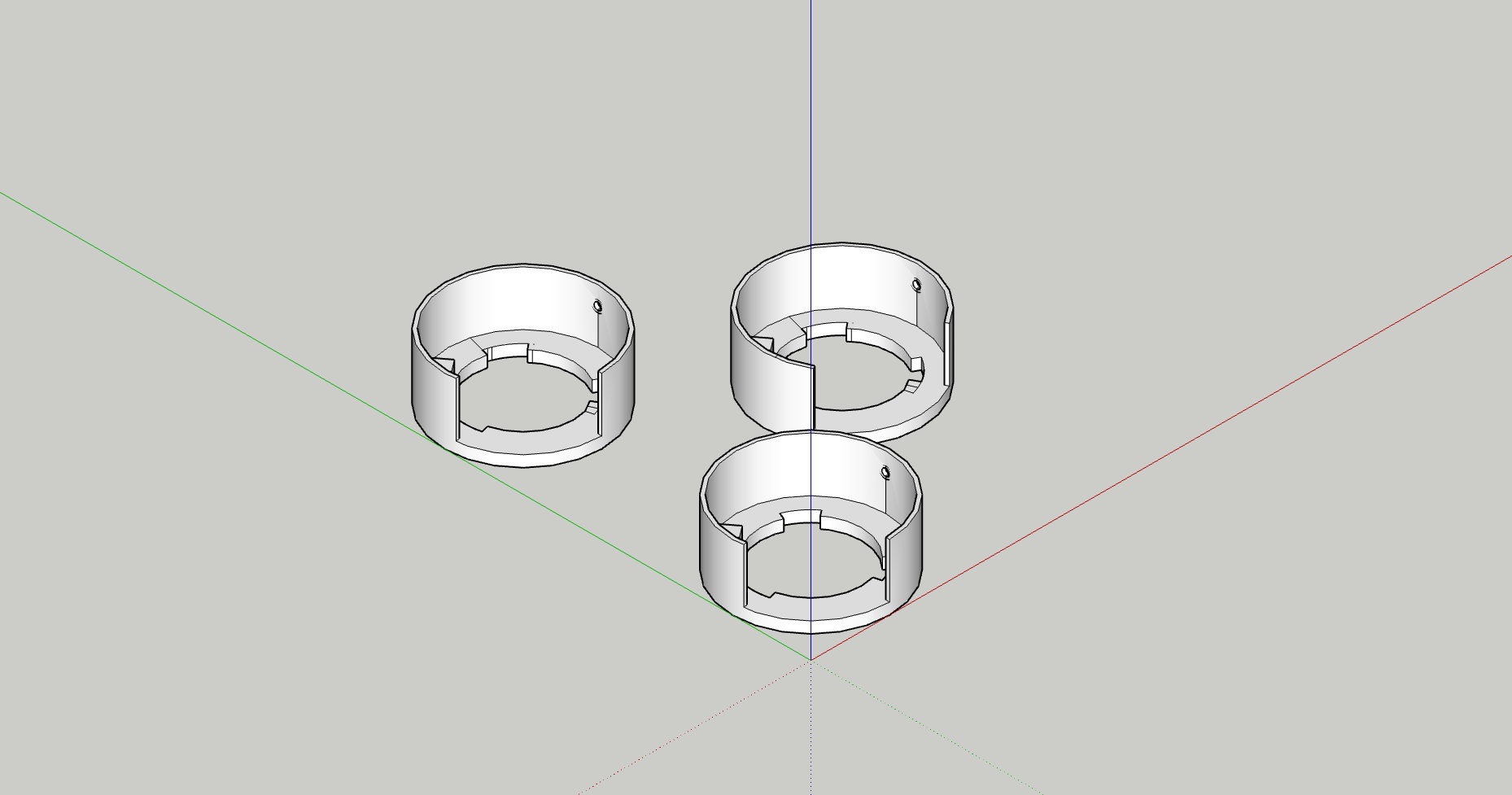

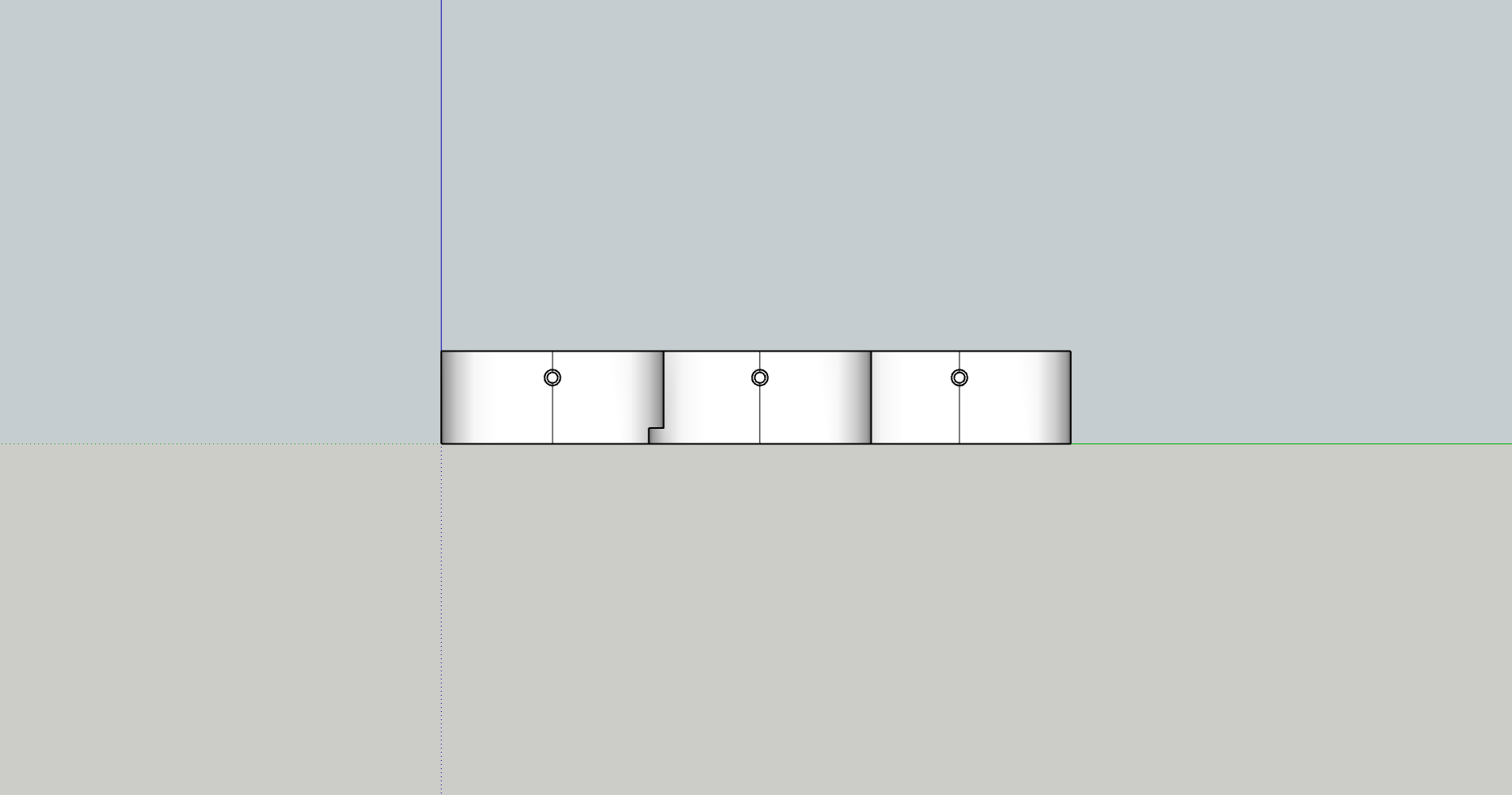

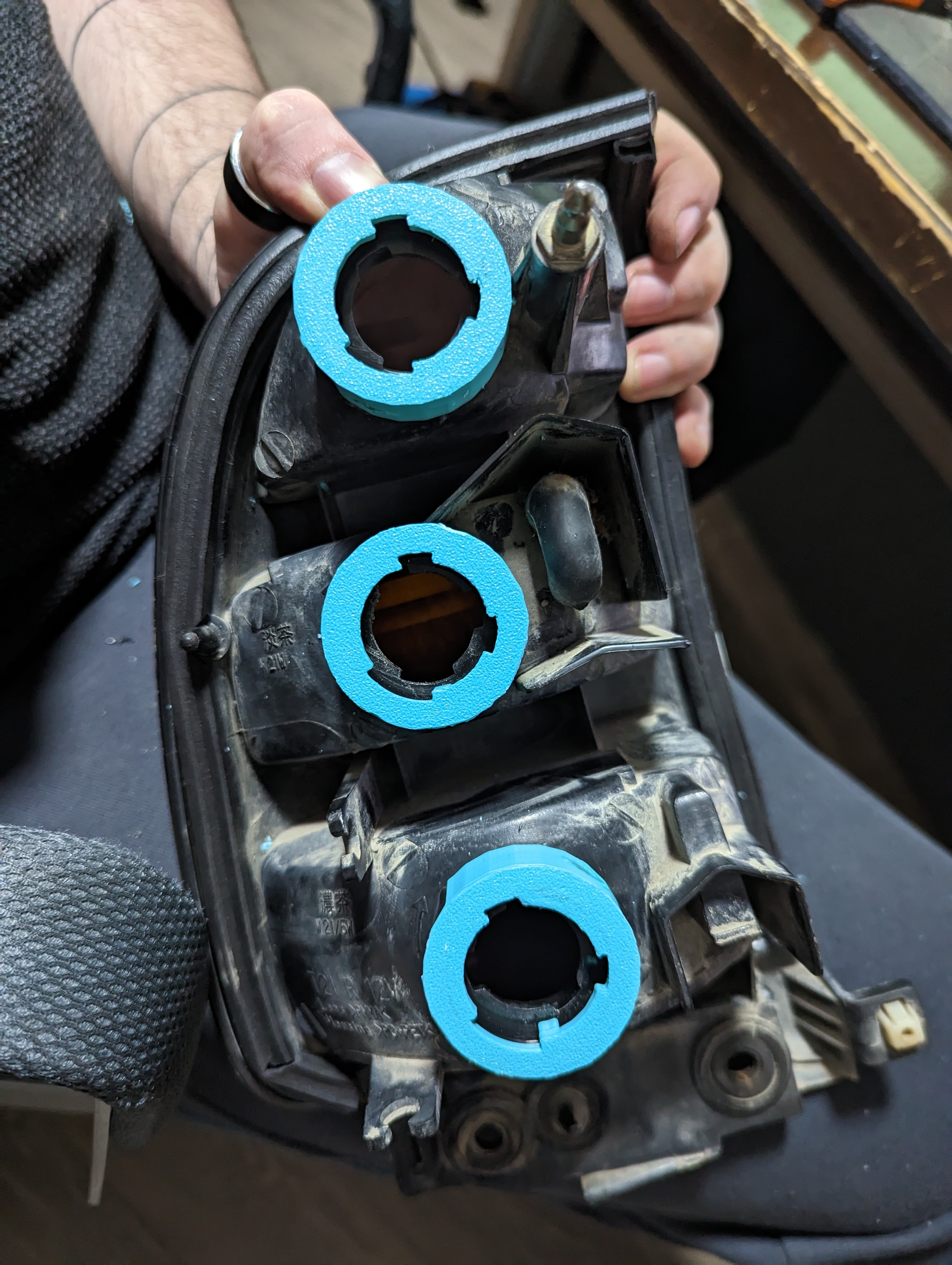

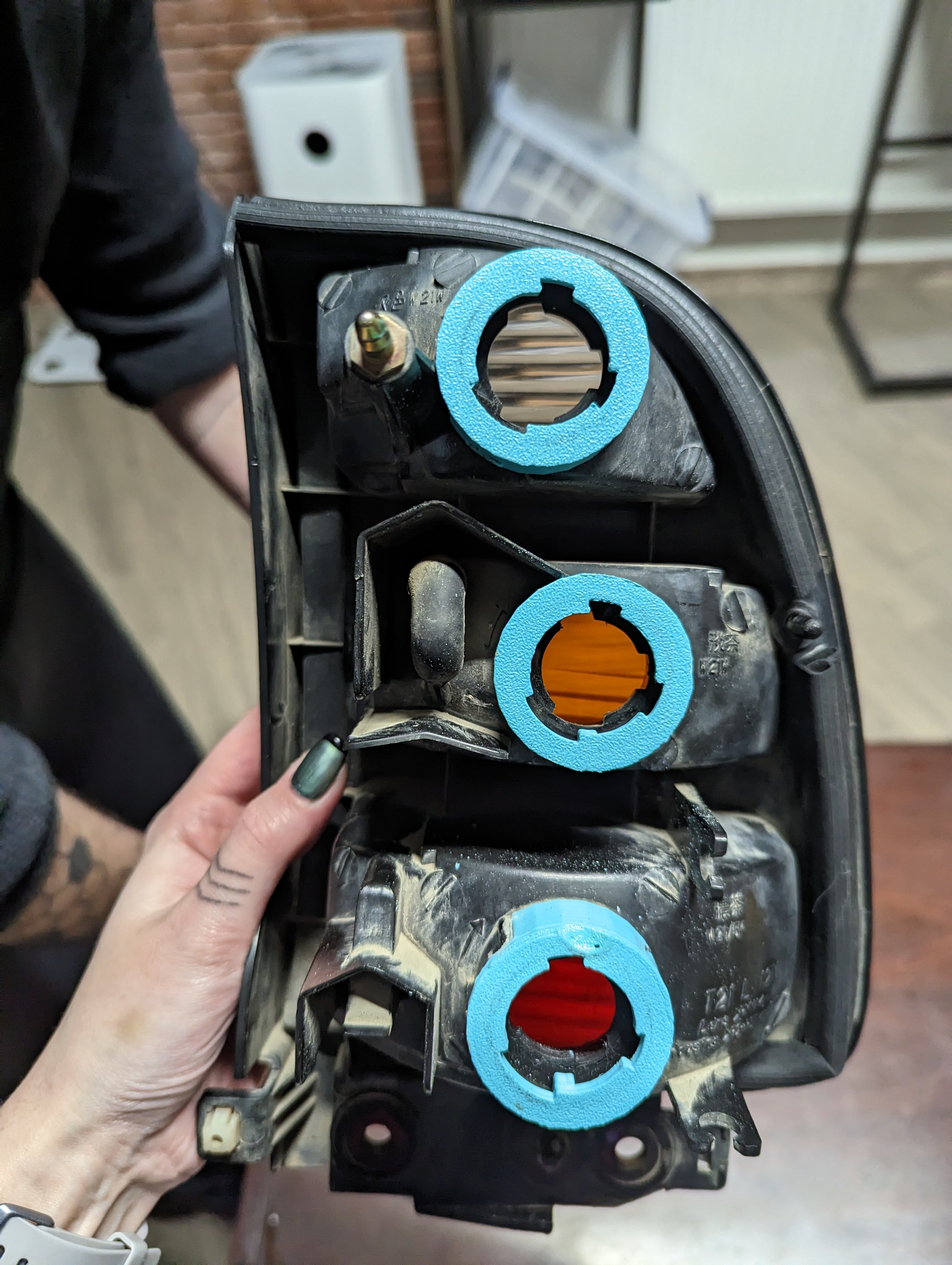

Since the older plugs did not fit, I had to measure and 3D print adapters. The material used is ASA. The preservation of older plugs was essential, because I had had invested in LED lights and I DO NOT like to cut wires if I don't have to. In order to somewhat weatherproof the lights, I added rubber seal around.

STL file: {{ filecontent('Rav4 rear lights (3).stl') }}

PXL_20230319_151501445 PXL_20230319_111002805 PXL_20230319_121414144

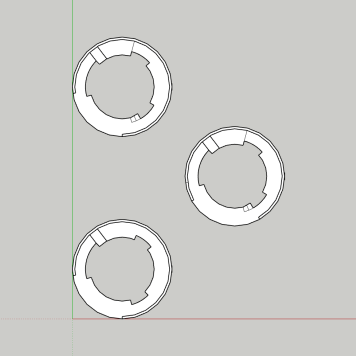

Rav4%20rear%20lights Rav4%20rear%20lights%20%281%29 Rav4%20rear%20lights%20%282%29

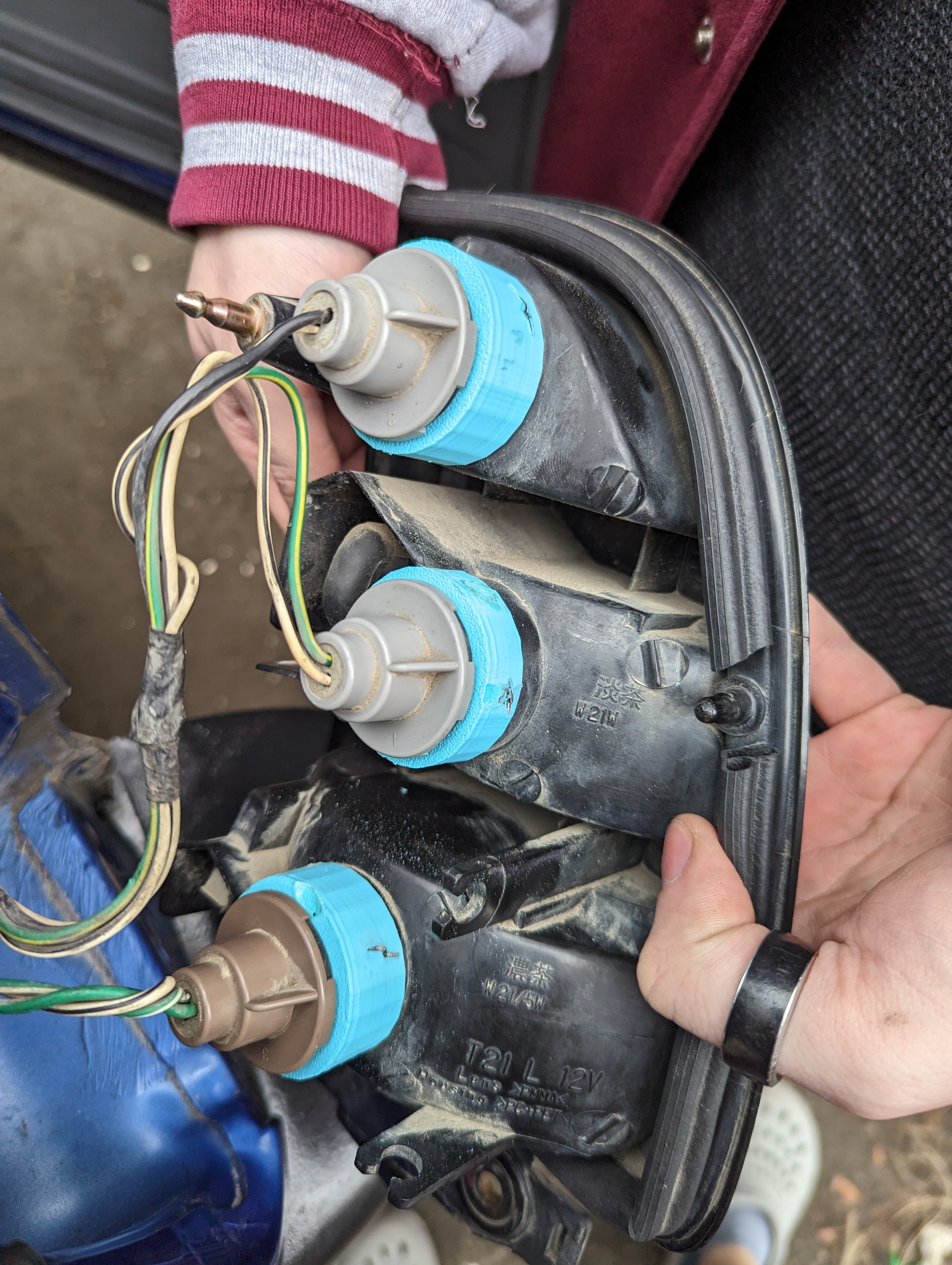

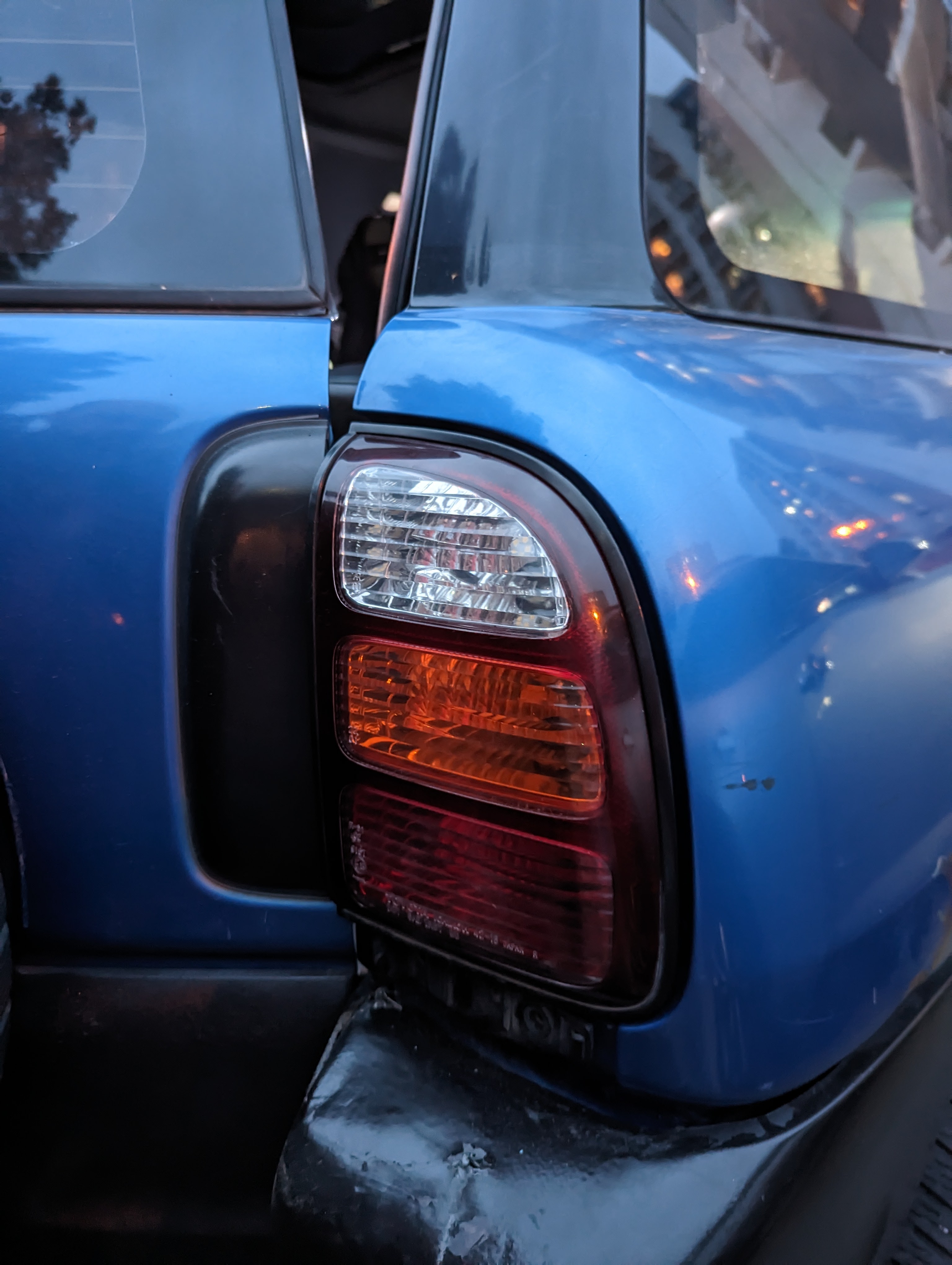

Overall fitment was a bit on a tight side, but all went well.

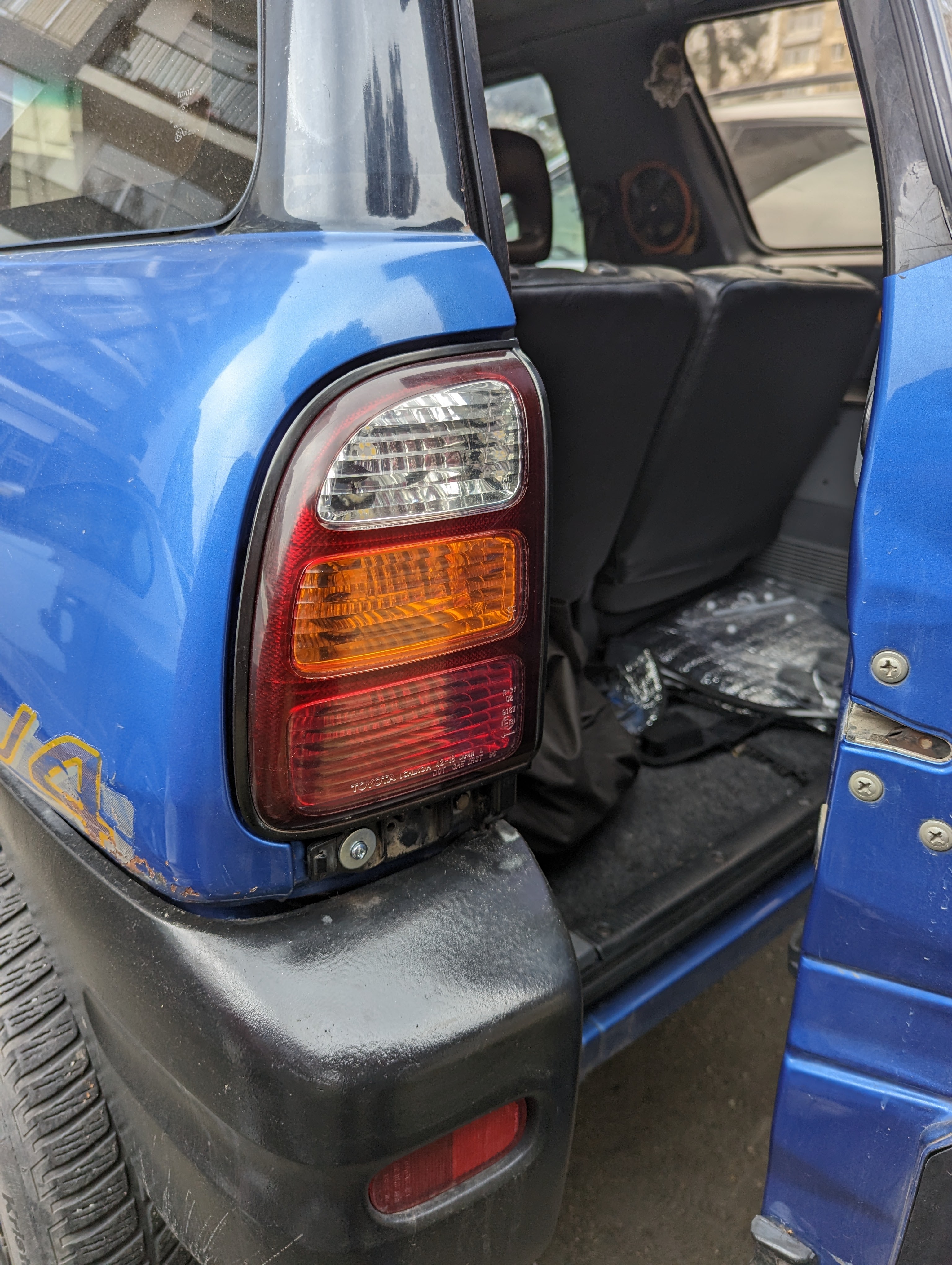

PXL_20230319_121710246 PXL_20230319_152103012 PXL_20230319_152337496

Due to limited availability of tools, the snapped bolt on the LEFT REAR light has been retapped with an M5 bolt and should be fixed ASAP
