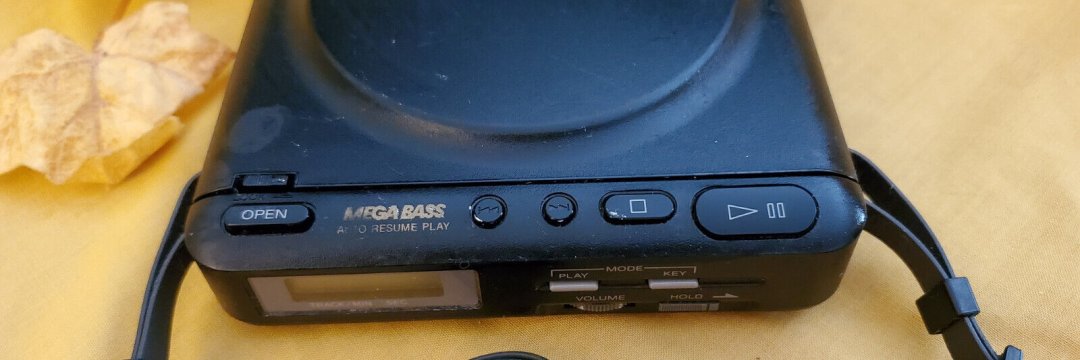

Discmand12

Sony • Discman D-12

  • Manufacturer: SONY
  • Year: 1988
  • Type: CD Player
  • Dimensions (WHD): 138.6 x 38.5 x 150 mm
  • Net weight: 0.450 kg
  • Optional Accessories: Car Mount plate CPM-100P/200P
  • Power type and voltage: Batteries / addl. power jack / AA: 4 x 1.5 / 9 Volt
  • Material: Plastic (no bakelite or catalin) top; Metal bottom;

A small portable stereo compact disc player powered either by 4 x AA batteries or by the supplied 9 volt AC mains adaptor. Can also be powered by a car battery via the optional CPM-100P/200P car mounting >kit which plugs into the car cigar lighter. Jacks for DC In 9V, Line Out, Remote and Phones with volume control. Track number display. Bass Boost switch.

Frequency Response: 20 - 20,000 Hz +1dB,-3dB Line Out: 1V at 47kΩ, Load Impedance over 10kΩ Phones: 9mW + 9mW at 32Ω

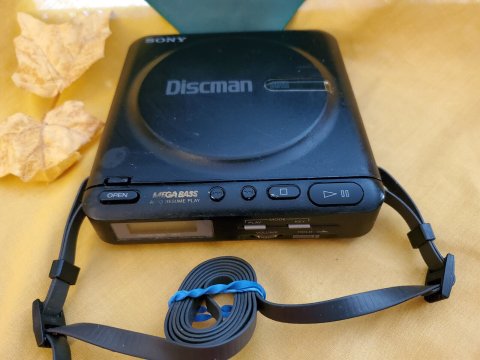

OG Condition

Discmand12

Process

Update 20/01/23:

I disassembled, cleaned and removed the main board + laser unit out of the body. Because of heavy damage to the board, I will remove worthwhile components (ribbon connectors and such) and save those as spares along with the laser unit.

One of the smaller bolts was seized. Drilled off and replaced. Probably should fix the small over-drilled area.

The belt was cleaned and moved to the sewing components
